Best Hydroponic Systems for Lettuce: NFT vs DWC vs Kratky

Choosing the best hydroponic system for growing lettuce depends on your operational budget, available space, grow room technical experience, and target harvest yield. The three main hydroponic systems used for commercial and home lettuce production are Nutrient Film Technique (NFT), Deep Water Culture (DWC), and passive Kratky reservoirs. Each system offers unique mechanical advantages, root oxygenation dynamics, and water thermal stability.

To calculate exact nutrient dosing, use our Hydroponic Nutrient Calculator, maintain water pH with our Hydroponic pH Calculator, or convert EC values using our EC to TDS / PPM Converter.

1. Technical Architectural Comparison of Lettuce Systems

NFT systems continuously recirculate a thin stream of nutrient solution across sloped PVC channels, delivering high dissolved oxygen to root mats. DWC systems submerge plant roots in a deep, aerated water tank using floating foam rafts, providing high thermal buffering. Kratky systems use stationary reservoirs with expanding air gaps, eliminating pumps and electrical reliance entirely.

Active Recirculating vs Passive System Dynamics

The choice between active recirculating systems and passive tanks involves trade-offs between labor efficiency and risk management. NFT systems allow automated commercial channel flushing and dense gutter spacing, maximizing plants per square foot. However, because roots reside in a shallow 1–2 mm water film, pump failures cause complete crop desiccation within 2 hours. DWC systems hold hundreds of gallons of nutrient water, protecting crops against power outages for days.

Dissolved Oxygen Saturation Science

Dissolved oxygen (DO) saturation curves dictate system performance. At 65°F, water holds up to 9.5 mg/L of dissolved oxygen. In NFT channels, thin water film exposure to ambient channel air maintains DO near 8.0 mg/L. In DWC tanks, continuous aeration from high-output diaphragm air pumps maintains DO between 6.0 and 8.0 mg/L. In Kratky systems, upper air roots absorb atmospheric oxygen directly from humid air space, bypassing water oxygenation limits.

Thermal Buffering and Heat Dissipation

Water volume acts as a natural thermal insulator. In large DWC tanks holding 50 to 100 gallons of solution, water temperature remains stable even during peak afternoon heat spikes. In thin-film NFT channels, the shallow stream absorbs ambient air heat rapidly, requiring commercial water chillers to maintain liquid temperatures below 70°F.

2. Detailed System Mechanics and Thermal Dynamics

1. Nutrient Film Technique (NFT)

NFT systems use sloped rigid PVC channels (typically 1:30 or 1:40 slope gradient) to deliver a shallow 1–2 mm film of recirculating solution. A submersible pump pumps nutrient solution from a sump tank to the high end of each channel. As the liquid flows down the channel over bare plant roots, it picks up atmospheric oxygen before dropping back into the sump. NFT systems maximize plants per square foot and allow automated commercial harvesting, but require 24/7 pump operation and thermal chillers during hot summer months.

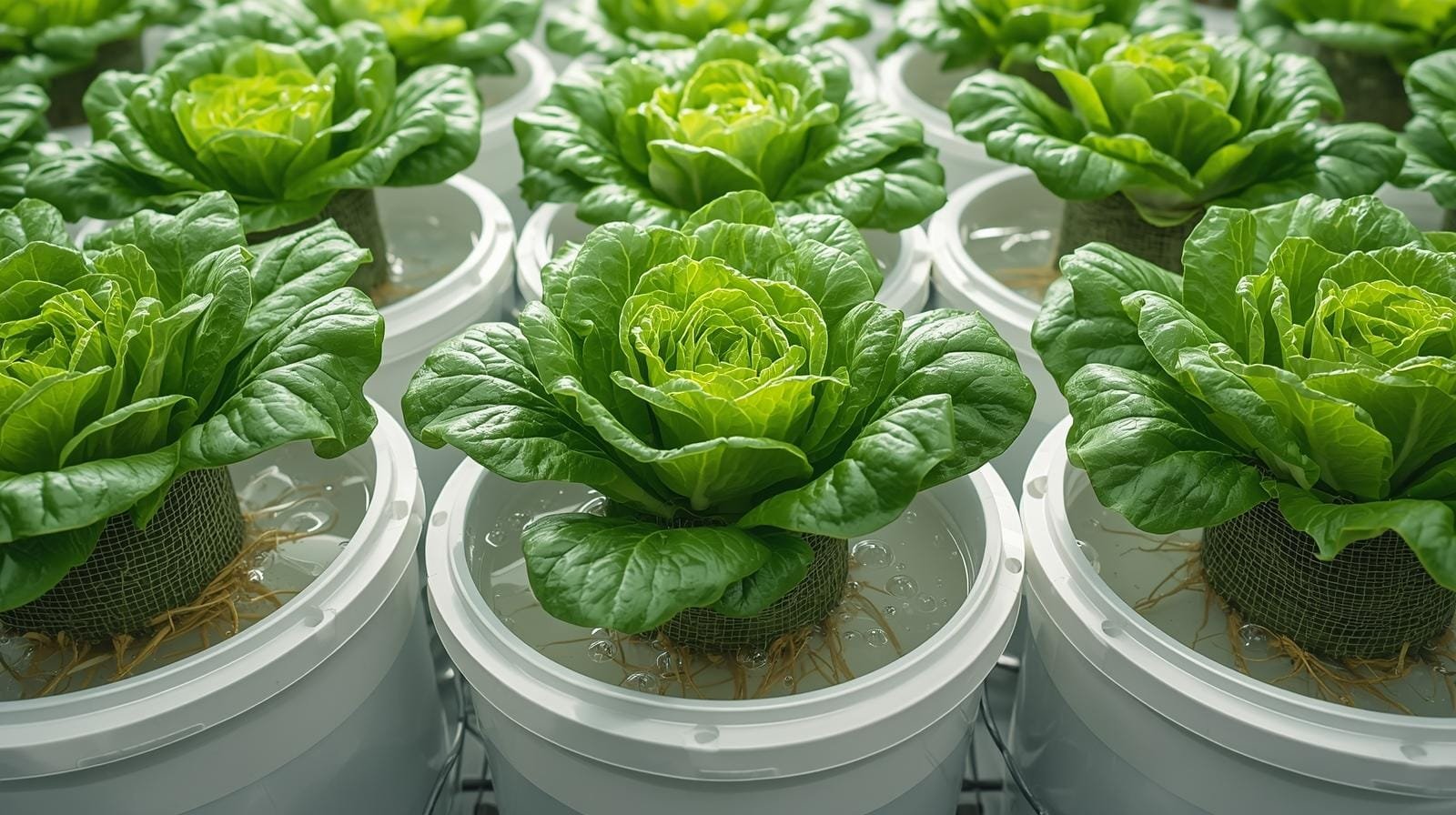

2. Deep Water Culture (DWC)

DWC systems utilize deep water tanks (typically 8 to 12 inches deep) topped with high-density food-grade polystyrene floating rafts. Seedlings in net pots sit in raft holes with roots submerged in continuously aerated water. High-volume air pumps push air through submerged air stones, maintaining 6–8 mg/L dissolved oxygen. The large volume of water acts as a thermal buffer, keeping root temperatures cool (65°F–68°F) even during ambient greenhouse heat spikes.

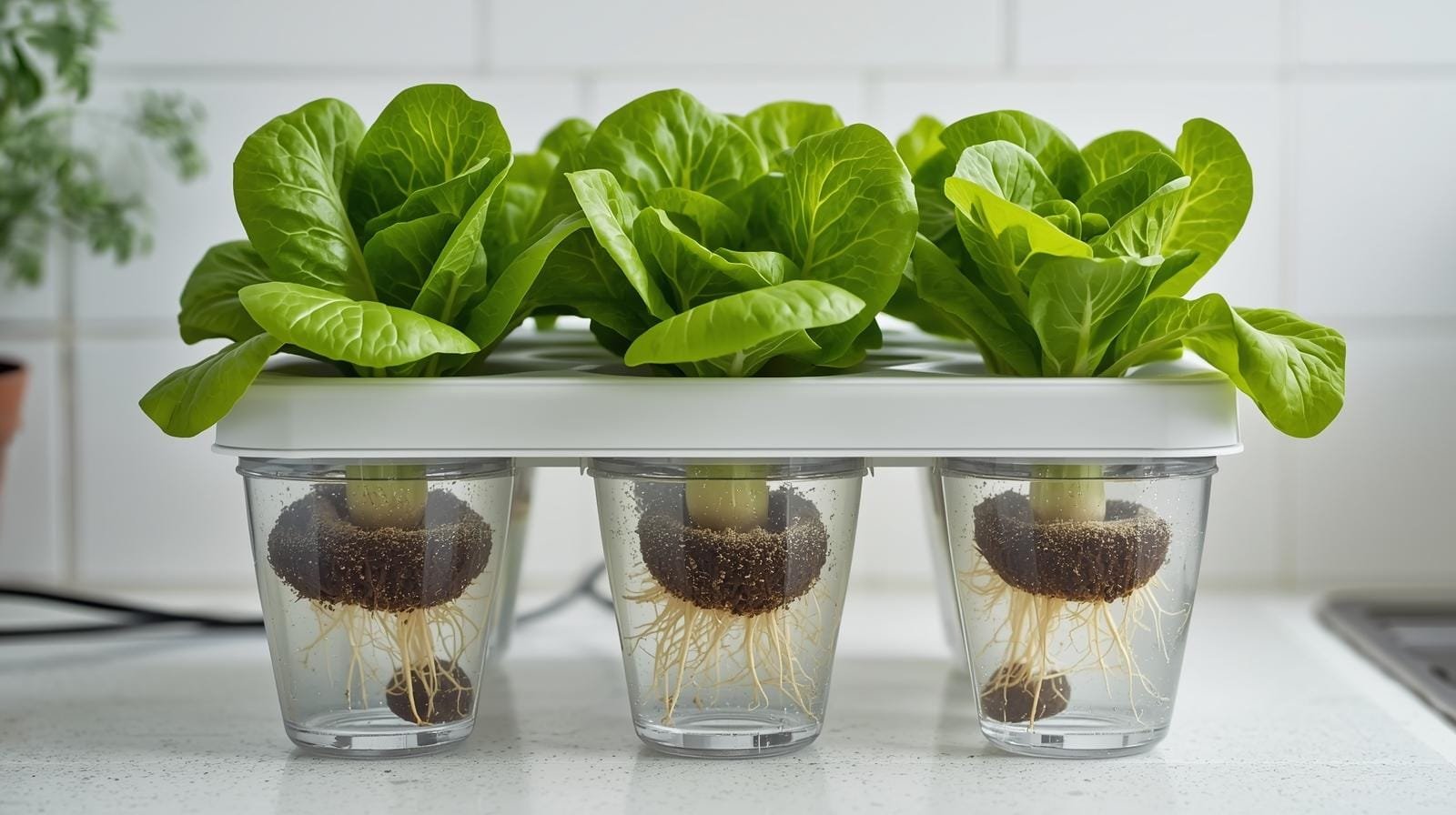

3. Kratky Passive Method

The Kratky Method is a 100% non-electric passive hydroponic system. Plants sit in net pots suspended above a stationary reservoir filled with nutrient solution. As plants consume water, the liquid level drops, creating an expanding humid air gap between the net pot and liquid surface. Upper roots develop into specialized air roots that absorb oxygen, while lower roots absorb water and nutrients. Kratky is ideal for budget home growers and classrooms, requiring zero power or pumps.

4. Ebb & Flow (Flood & Drain)

Ebb and Flow systems flood a plant tray with nutrient solution from a sump tank using a timed pump, then allow the solution to drain completely back via a bell siphon. During the drain phase, atmospheric oxygen is pulled deep into the root substrate (like expanded clay pebbles or coco coir). Ebb and Flow is highly versatile, supporting mixed crops and larger potted root systems.

3. Operational CapEx, OpEx, and Maintenance Risk Protocols

Evaluating initial setup cost (CapEx) against long-term maintenance labor (OpEx) is crucial when selecting a system. While passive Kratky systems have zero electrical operational cost, active NFT and DWC systems deliver higher yield consistency and faster crop turnaround times.

Capital vs Operational Expenditures

Kratky systems require the lowest CapEx ($20–$50 per setup) and zero electrical OpEx. DWC systems require moderate CapEx ($100–$250 for air pumps, rafts, and tanks) with low continuous power draw. NFT systems require higher CapEx ($300–$1,000 for channels, manifolds, and sumps) and ongoing pump power costs.

Power Failure Risk Management

In NFT and aeroponic systems, a power outage stops liquid circulation immediately. Because roots reside in thin air or thin water films, plants suffer permanent wilting within 2 hours. Installing an Uninterruptible Power Supply (UPS) or automatic back-up generator is mandatory for commercial NFT operations.

System Flushing and Sanitation Schedules

Flushing reservoirs every 14 days removes accumulated sodium and unabsorbed mineral ions. Between crop cycles, submerge all rafts, channels, and sumps in a 10% bleach solution for 30 minutes to eradicate fungal spores and organic biofilms.

4. System Maintenance & Troubleshooting Guide

Managing an active or passive lettuce system requires prompt identification of mechanical and biological failure points.

Symptom 1: NFT Channel Overflow and Root Clogging

In mature NFT systems, heavy lettuce root mats can dam up channel flow, causing nutrient water to spill over channel end caps. Shear lower root tips bi-weekly and inspect end caps during routine checks.

Symptom 2: Air Stone Clogging in DWC Tanks

Over time, calcium carbonate scale drops out of solution and clogs micro-pores in submerged air stones, reducing bubbling efficiency. Soak air stones monthly in white vinegar to dissolve mineral crusts.

Symptom 3: Pythium Root Rot in Warm Reservoirs

When reservoir water exceeds 72°F, dissolved oxygen drops and Pythium fungus infects root tips. Flush tank with 3% hydrogen peroxide, cool water to 66°F, and install inline water chillers.

5. System Optimization & Selection Recommendations
